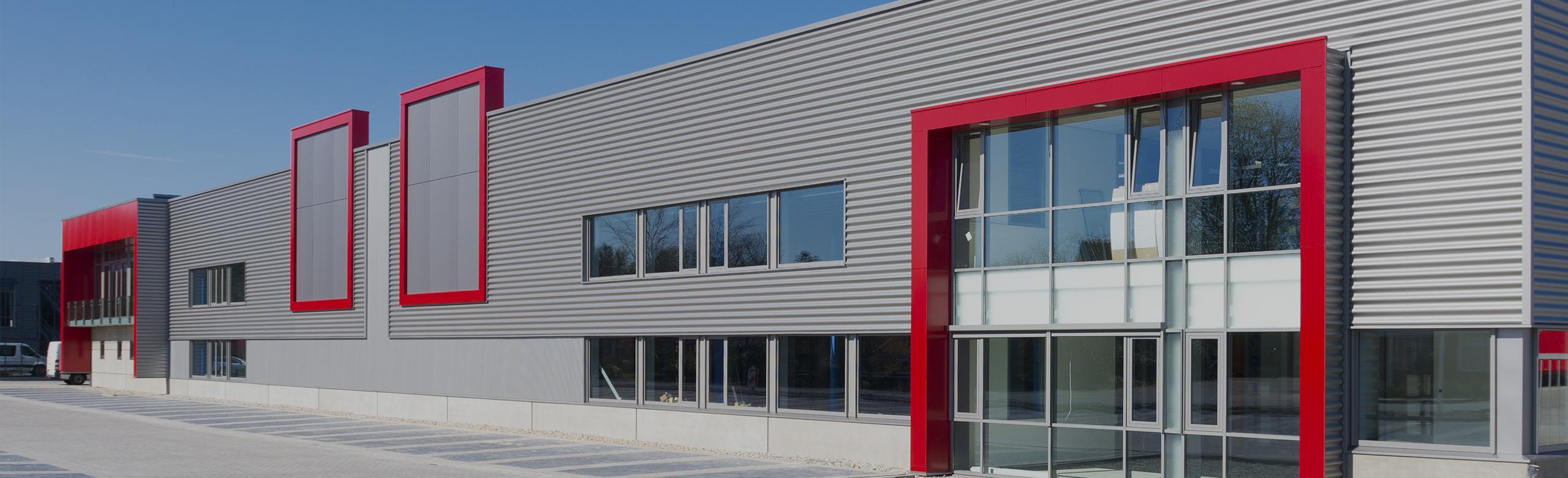

Industrial buildings with heavy plant and machinery.

vibration isolation for industrial applications

REGUPOL and REGUFOAM vibration

Industrial Plants

How can we isolate machinery and equipment effectively? Together.

Heavy plant and machinery can have a disruptive effect on the surrounding area – and thus on working and living spaces – due to unwanted vibrations and impact forces. The use of elastic mounting for machine foundations reliably prevents the transmission of vibration forces. REGUPOL offers materials approved by building authorities for this purpose in the REGUPOL vibration and REGUFOAM vibration ranges, covering a load range from 0.002 to 2.5 N/mm².

ELASTIC MOUNTING OF MACHINE FOUNDATIONS

With elastic mounting, the foundation of the machine or plant rests on an elastomer, which decouples the machine from the building structure and its surroundings in terms of vibration. REGUPOL and REGUFOAM vibration have been used worldwide for decades for vibration isolation and structure-borne sound decoupling of machines and plant. In addition to production machinery, building services systems are among the typical areas of application, such as HVAC systems, heat pumps or combined heat and power plants. Find out more on the Technical Centre page.



.

REGUPOL vibration

REGUPOL vibration

Highly effective solutions for vibration isolation and structure-borne sound decoupling

REGUFOAM vibration

REGUFOAM vibration

Highly effective solutions for vibration isolation and structure-borne sound decoupling

Support with sizing .

REGUPOL assists designers with product selection and the sizing of flexible bearings, draws up installation plans and provides support during implementation and installation. Please feel free to contact us regarding the technical reports for REGUFOAM and REGUPOL vibration resulting from the approval processes and follow-up measurements.

Planning guidelines

  • Optimal product performance is achieved within the specified continuous load limit. If this limit is exceeded, REGUPOL vibration deflects progressively, whilst REGUFOAM vibration deflects degressively; in neither case does the material fail.
  • REGUPOL vibration 200 must be protected from damp and water due to its low stiffness and cellular structure. All other REGUPOL vibration types are also suitable for use outside buildings.
  • REGUFOAM vibration types with lower dynamic stiffness can absorb water due to their mixed-cell structure and must be protected from water ingress.
  • Fire behaviour of REGUPOL and REGUFOAM vibration: B2 and E respectively, measured in accordance with DIN 4102 and DIN EN 13501-1.
  • Instructions for installing REGUPOL and REGUFOAM vibration can be found in the installation guide.

Useful information on vibration isolation for machinery and machine foundations

Yes. The REGUPOL vibration range comprises eight standard types with general building authority approval, whilst the REGUFOAM vibration range comprises twelve standard types with general building authority approval.

REGUPOL vibration is suitable, with the exception of Type 200. REGUFOAM vibration is ozone-resistant; in particular, types with lower dynamic stiffness must be protected against water ingress.


.

Exceeding the continuous load limit results in a progressive deflection curve for REGUPOL vibration and a degressive deflection curve for REGUFOAM vibration, but does not lead to material failure. The optimum properties are found within the range of the continuous load limit; the design value for the maximum load-bearing capacity is between 150 and 200 per cent of the continuous load limit.


.

With REGUFOAM, vibration is reduced, depending on the load and thickness, to 8 Hz or 9 Hz respectively; at a thickness of just 50 mm, it is ≤10 Hz. With REGUPOL, vibration is reduced, depending on the load and thickness, to 10 Hz; for types 400 and 300, this is 11 Hz and 12 Hz respectively.


.

The machine foundation is mounted elastically on an elastomer; depending on the type of material, it may also be mounted on strip or point bearings. This effectively reduces the transmission of vibrations and structure-borne noise to the building and the surrounding area. The types are graded according to surface load; the achievable natural frequency depends on the load and thickness.


.
