REGUPOL vibration isolation

For machines and building foundations

REGUPOL vibration

For vibration isolation and structure-borne sound decoupling

The building authority approved REGUPOL vibration range offers a portfolio of eight product types which can be used in the wide load range between 0.002 N/mm² and 1.5 N/mm². This creates many possibilities to implement an isolation concept for projects in the field of building services and HVAC equipment, machines, pools and gyms, as well as vibration protection for buildings, especially those in close proximity to rail infrastructure.

Our team is by your side to assist you in product selection, planning, conception of installation plans and will provide support during installation and implementation.

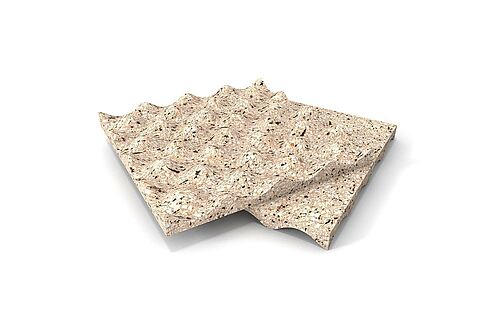

REGUPOL vibration 200

REGUPOL vibration 200

The approved material REGUPOL vibration 200 is used in the load range up to 0.02 N/mm². Depending on load and material thickness, natural frequencies…

REGUPOL vibration 300

REGUPOL vibration 300

The approved material REGUPOL vibration 300 is used in the load range up to 0.05 N/mm². Depending on load and material thickness, natural frequencies…

REGUPOL vibration 400

REGUPOL vibration 400

The approved material REGUPOL vibration 400 is used in the load range up to 0.10 N/mm². Depending on load and material thickness, natural frequencies…

REGUPOL vibration 450

REGUPOL vibration 450

The approved material REGUPOL vibration 450 is used in the load range up to 0.12 N/mm². Depending on load and material thickness, natural frequencies…

REGUPOL vibration 480

REGUPOL vibration 480

The approved material REGUPOL vibration 480 is used in the load range up to 0.15 N/mm². Depending on load and material thickness, natural frequencies…

REGUPOL vibration 550

REGUPOL vibration 550

The approved material REGUPOL vibration 550 is used in the load range up to 0.30 N/mm². Depending on load and material thickness, natural frequencies…

REGUPOL vibration 800

REGUPOL vibration 800

The approved material REGUPOL vibration 800 is used in the load range up to 0.80 N/mm². Depending on load and material thickness, natural frequencies…

REGUPOL vibration 1000

REGUPOL vibration 1000

The approved material REGUPOL vibration 1000 is used in the load range up to 1.50 N/mm². Depending on load and material thickness, natural frequencies…

REGUPOL vibration range

The REGUPOL vibration Range is based on rubber fibres and granules and has been used successfully worldwide for vibration isolation and structure-borne sound decoupling of machinery and vibration protection in buildings since the early 1990s. The material, made of recycled rubber from vehicle tyres, is extremely resilient and durable. Even after decades in use, its properties only change marginally. Successfully completed projects and expert opinions document the quality of these materials.

QUICK OVERVIEW REGUPOL VIBRATION RANGE

The REGUPOL vibration products have relatively wide load ranges and are characterised by a constant natural frequency. Best outcomes can be expected if the product is used within the range of the specified load capacity limit. Exceeding this load limit does lead to progressive spring characteristics but not to material failure. In fact, the rated value for maximum load capacity is 150 to 200 % of the specified limit.
