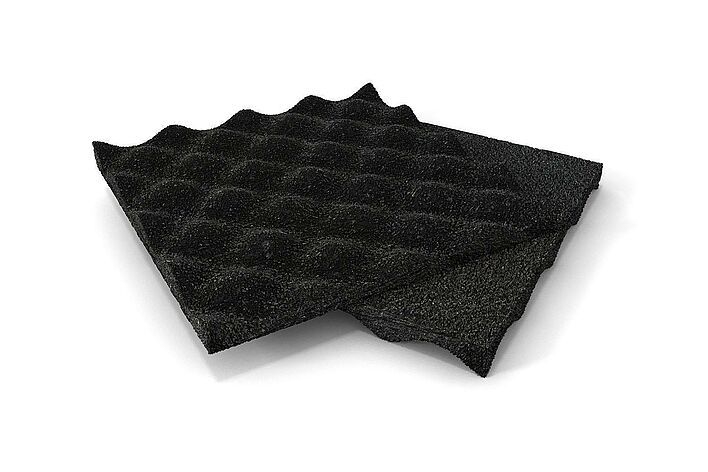

REGUPOL vibration 300
Vibration isolation
The approved material REGUPOL vibration 300 is used in the load range up to 0.05 N/mm². Depending on load and material thickness, natural frequencies of 12 Hz can be achieved.
REGUPOL vibration 300 is a vibration isolation and structure-borne sound decoupling material for the load range up to 0.05 N/mm². It can be used in single or multiple layers to achieve natural frequencies of down to 12 Hz, depending on load and material thickness.
Features
- Approved by building authorities
- Load range up to 0.02 N/mm²
- Natural frequency of down to 10 Hz
- Progressive spring characteristics
- Constant natural frequency over a wide load range
Technical Specifications
Material
PUR elastomer composite
Dimensions
Length: 10,000 mm, width: 1,250 mm, thickness: 17 mm
Weight per roll
max. 95.0 kg
Weight per m²
max. 7.6 kg
REGUPOL – the expert by your side
In REGUPOL, building acoustic specialists all over the world have an expert partner with many years’ experience in vibration isolation and structure-borne sound decoupling of machinery and buildings. The products of the REGUPOL vibration range are characterized by their outstanding durability. Successfully completed projects and expert opinions clearly document the quality of these materials.
