REGUFOAM sound 10

Impact sound insulation

REGUFOAM sound 10

Impact sound insulation

∆Lw ≥ 34 dB

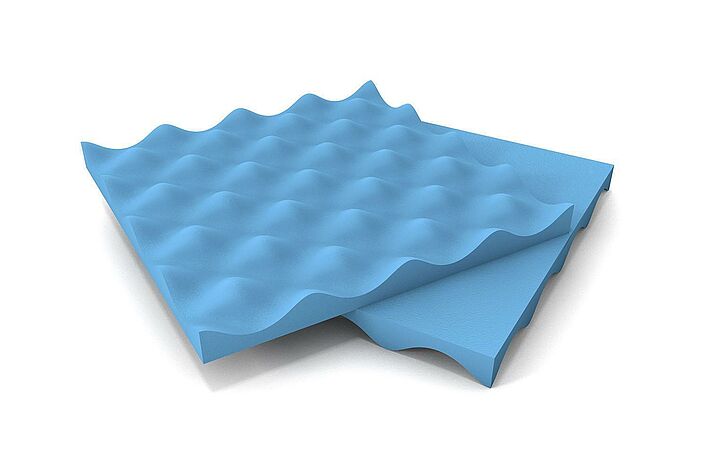

The 17 mm thick impact sound insulation material REGUFOAM sound 10 has a profiled underside and is the technically most effective variant, designed to meet the highest acoustic demands.

REGUFOAM sound 10 is an effective, 17 mm thick impact sound insulation layer with a profiled underside and a low dynamic stiffness of ≤ 6 MN/m³ which is used under heavy-duty screeds.

Impact sound reduction value of ∆L≥ 34 dB.

REGUFOAM sound 10
Cradle to Cradle Certified® Bronze

Realized projects with the impact sound insulation membrane REGUFOAM sound 10

Convinced customers all over the world are the best testimony to quality and experience. Here we show a selection of our projects implemented with REGUFOAM sound 10 impact sound insulation.

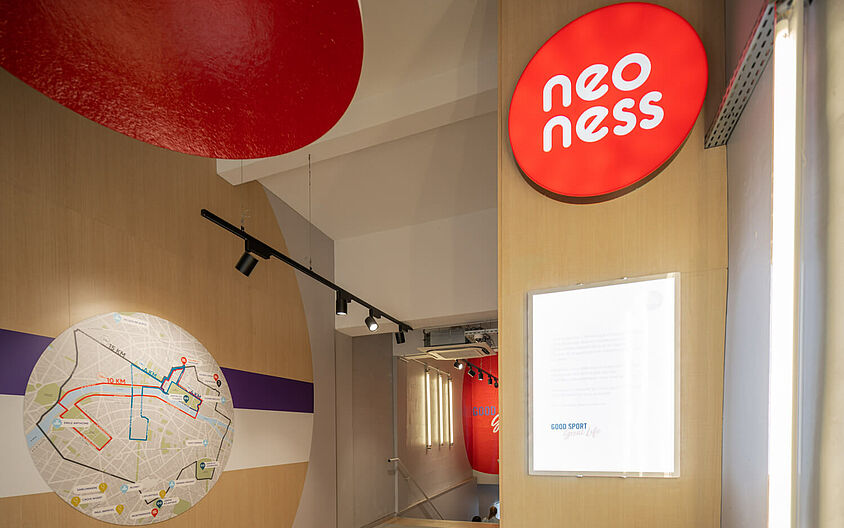

Neoness Madeleine Paris

Neoness Madeleine Paris

The fitness studio group Neoness is represented with a total of around 40 studios in the large cities of France. The combination of cardio areas, CrossFit areas and free weight zones and their location above or below flats describes the problems of fitness studios from a sound…

read more
From brownfield to cultural centre

From brownfield to cultural centre

The Centrum Praskie Koneser is a unique place in the Praga district of Warsaw. It is named after the "Koneser" vodka factory, which produced on the site until 2009. After production ceased, a concept for conversion was developed. Between 2015 and 2018, the entire area was…

read more

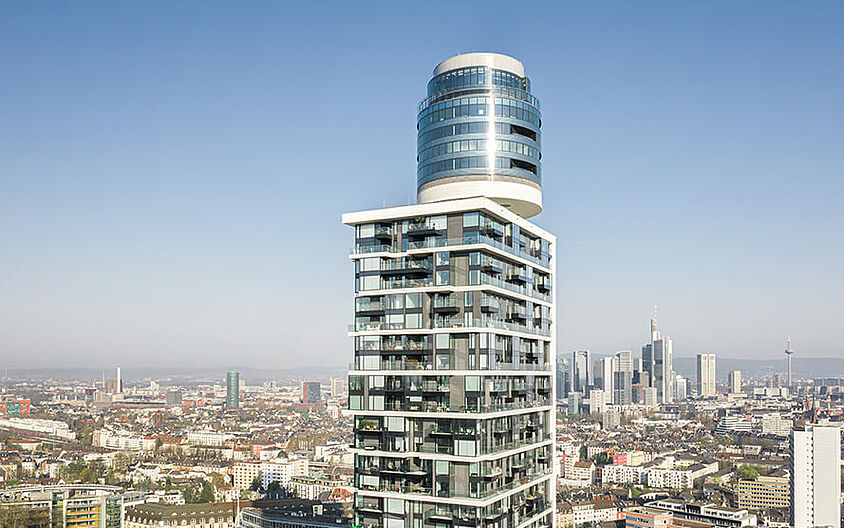

Living at the highest level – Henninger Turm Frankfurt

Living at the highest level – Henninger Turm Frankfurt

The Henninger Tower is a landmark of Frankfurt's popular Sachsenhausen district and is known far beyond the borders of the metropolitan region. Built in 1961, the original tower was demolished in 2013 to the regret of many Frankfurt residents. The former 119.5-metre-high building…

read more

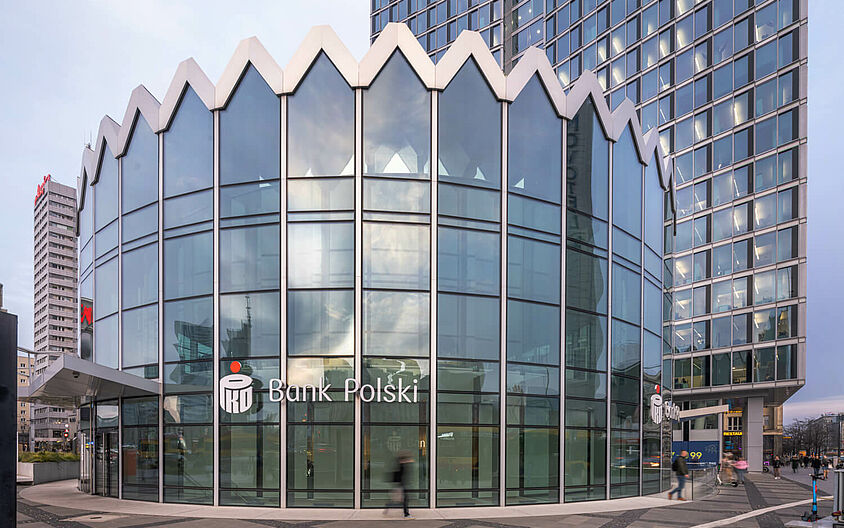

Mixed-use building Rotunda Warsaw

Mixed-use building Rotunda Warsaw

The Warsaw Rotunda is a freestanding circular building and the only one of its kind to be built in the city after the Second World War. It was important to the architects to create a counterweight to the massive Palace of Culture, which they did perfectly with the circular shape…

read more

Features


  • CE marking
  • Impact sound reduction ∆Lw ≥ 34 dB
  • Load bearing capacity up to 25 kN/m²
  • Compressibility ≤ 2 mm

Technical Specifications


Material

Mixed cellular polyurethane foam

Dimensions

Length 1,100 mm, width 1,500 mm, thickness 17 mm

Weight per m²

2.3 kg

REGUPOL – the expert by your side

In REGUPOL, specialists all over the world have an expert partner with many years’ experience in impact and airborne sound insulation, that guarantees a premium level of building acoustics, especially when multiple uses are combined within a single building.

With the REGUPOL and REGUFOAM sound range, effective soundproofing solutions can be implemented in urban densification concepts whether it is the construction of new buildings or the renovation of residential and commercial properties.
