REGUFOAM strips

Vibration isolation

REGUFOAM strips

Vibration isolation

Approved bearing strips to reduce the flanking transmissions of Cross-Laminated-Timber (CLT) constructions

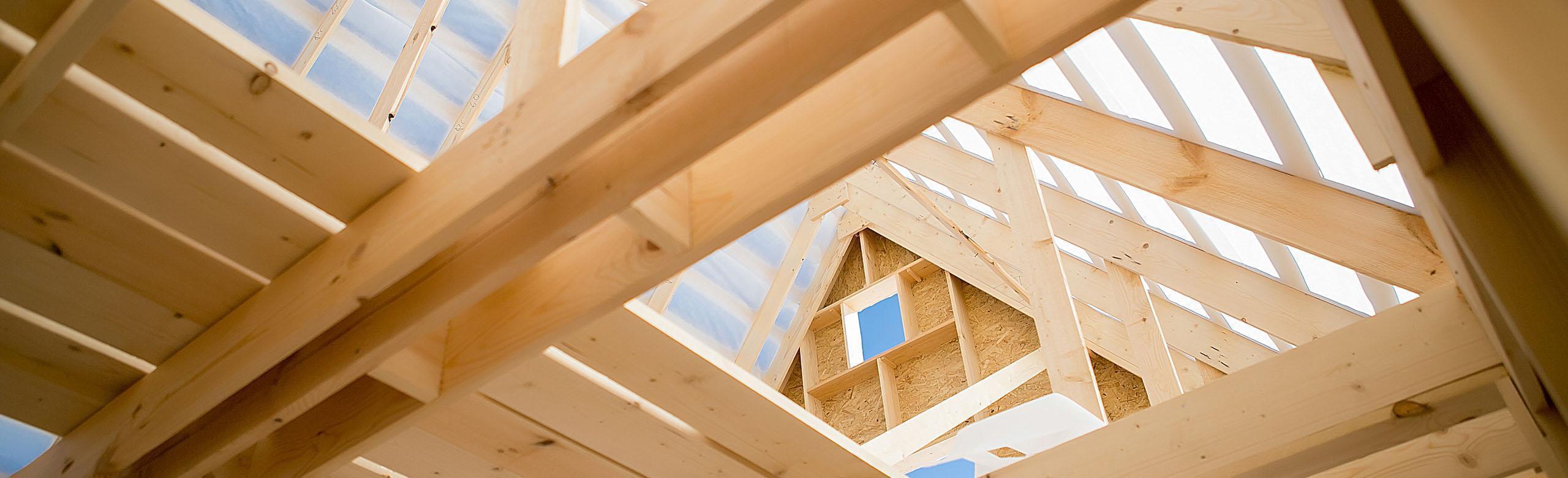

Considering the ecological and economic advantages, the massive timber construction industry is looking into a bright future. However, the impact noise reduction in such buildings often requires major efforts, which consequently could result in higher costs or increased heights of ceiling systems.

To avoid the counteracting of all these measures that have been set to avoid noise nuisance in adjoining parts of the building, the flanking sound transmission should not be neglected in any way and should be seen as an additional element of the overall sound control in massive timber constructions.

REGUFOAM strips show extraordinary benefits in cost effectiveness while decoupling the flanking transmission, so that premium sound ratings can easily be achieved. Even for decades material properties will remain almost unchanged, thanks to the technically approved REGUFOAM material.

Whether as an elastic interlayer for floor wall junctions or a bearing strip for modular buildings, the REGUFOAM strips improve the vibration reduction index Kij significantly.

Not only a small deflection under load but also a low frequency are the key drivers for the effectivity of elastic interlayers in a mass-spring system. The great variety of product types within our REGUFOAM range as well as the fact that material properties can easily be calculated, enables us to find the right product for your project.

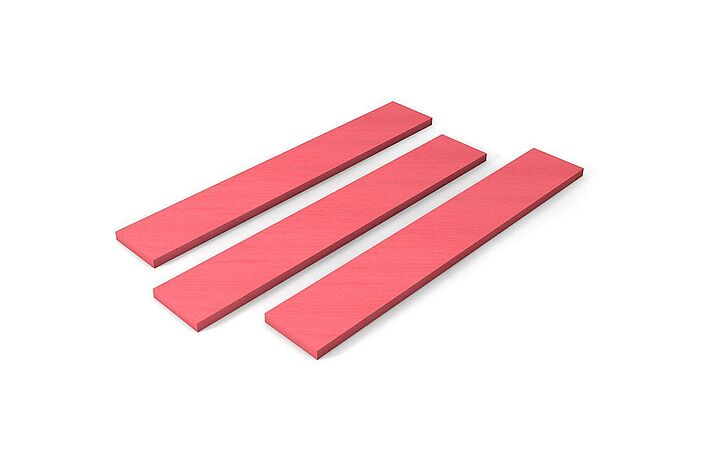

REGUFOAM strips

Features


  • Approved by building authorities
  • Load range 0.005 to 2.5 N/mm²
  • Minimal material deflection

Technical Specifications


Material

Mixed cellular polyurethane foam

Dimensions

Length: 1,500 mm, width: various,
thickness: 12.5 mm and 25.00 mm

REGUPOL – the expert by your side

In REGUPOL, specialists all over the world have an expert partner with many years’ experience in impact and airborne sound insulation, that guarantees a premium level of building acoustics, especially when multiple uses are combined within a single building.
