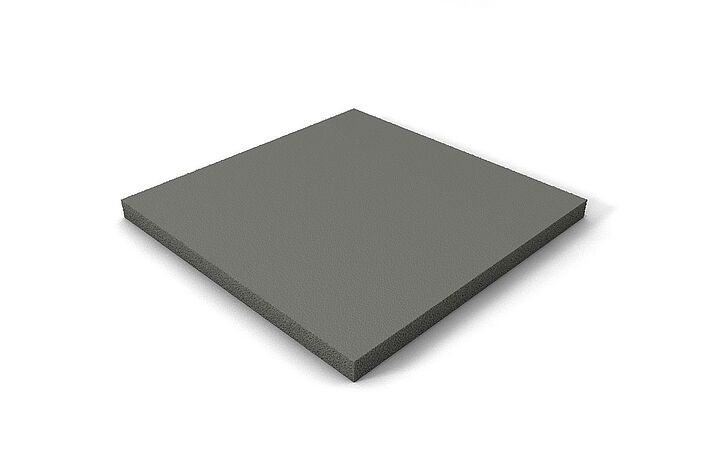

REGUFOAM vibration 400plus
Vibration isolation
The approved material REGUFOAM vibration 400plus is used in the load range up to 0.11 N/mm². Depending on load and material thickness, natural frequencies of 8 Hz can be achieved.
REGUFOAM vibration 400plus is a vibration isolation and structure-borne sound decoupling material for the load range up to 0.11 N/mm².
It can be used in single or double layers to achieve natural frequencies of down to 8 Hz, depending on load and material thickness.
Features
- Approved by building authorities
- Load range up to 0.11 N/mm²
- Natural frequency of down to 8 Hz
- Minimal material deflection
Technical Specifications
Material
Mixed cellular polyurethane foam
Dimensions
Length: 1,500 mm, width: 1,000 mm, thickness: 12.5 mm and 25.0 mm
Weight per m²
4.8 kg – thickness 12.5 mm
9.6 kg – thickness 25.0 mm
Downloads
REGUPOL – the expert by your side
In REGUPOL, building acoustic specialists all over the world have an expert partner with many years’ experience in vibration isolation and structure-borne sound decoupling of machinery and buildings. The products of the REGUFOAM vibration range are characterized by their outstanding durability. Successfully completed projects and expert opinions clearly document the quality of these materials.
