REGUPOL INODIS
Seismic resistant decoupling system
The seismic resistant decoupling system REGUPOL INODIS consists of vertical and horizontal decoupling elements and is capable of deformation as well as sliding to avoid both in-plane and out-of-plane failures.
The earthquake-resistant decoupling system REGUPOL INODIS consists of vertical and horizontal decoupling elements capable of deformation and sliding to prevent both in-plane and out-of-plane failure.

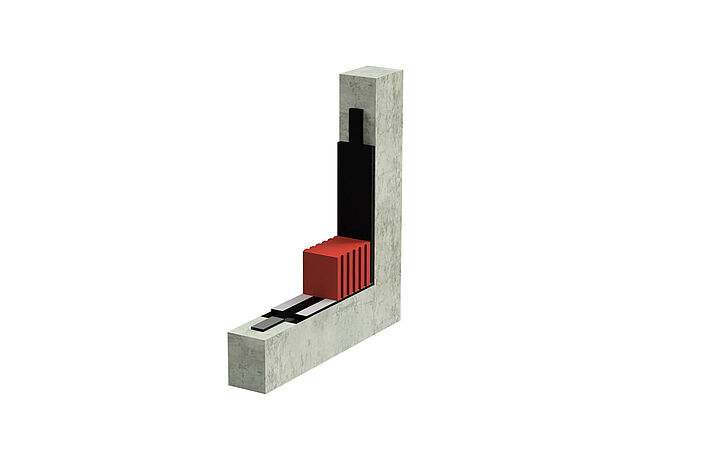

The REGUPOL INODIS product includes two modules: one for horizontal decoupling and the other for vertical decoupling.
The REGUPOL INODIS horizontal module consists of elastomers only 15 mm thick, separated by a sliding surface. The REGUPOL INODIS vertical module consists of elastomer strips with a thickness defined according to the interstory drift demand from the design.
Features
- Absorbs interstory drift higher than 2 %
- Prevents in-plane and out-of-plane failure
- Applicable on all typical infill-wall configurations
- Usable on all types of bricks and blocks
Technical Specifications
Material
PUR-bonded rubber fibres and sliding surface
Length
REGUPOL INODIS vertical: 1,000 mm
REGUPOL INODIS horizontal: 1,250 mm
Width
Depending on brick size
Thickness
REGUPOL INODIS vertical: Adapted to requirements
REGUPOL INODIS horizontal: 15 mm
Downloads
Your contact at REGUPOL
We're here to help.
Maximilian Schroeder
REGUPOL Germany GmbH & Co. KG
Business Development Manager Germany
REGUPOL the experts by your side
REGUPOL Acoustics has been an expert in the field of vibration and noise protection for more than 30 years. Therefore, we understand the complexity of vibrations and noise. Our experienced team works closely with customers and engineers to develop solutions that meet their specific requirements.
With REGUPOL INODIS, a new earthquake-resistant system for RC structures has been developed, also in close cooperation with partners from the university sector and engineers with decades of experience in earthquake engineering.
