REGUPOL sound 17

Impact sound insulation

REGUPOL sound 17

Impact sound insulation

∆Lw ≥ 26 dB to ∆Lw ≥ 30 dB

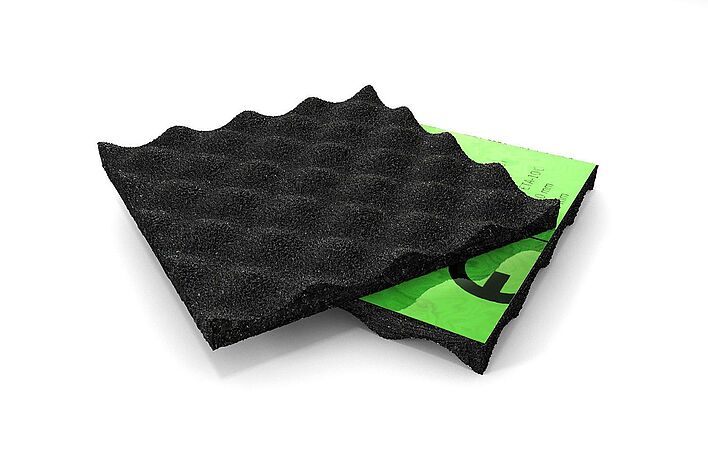

The 17 mm thick impact sound insulation material REGUPOL sound 17 has a profiled underside and is a long-established variant under heavy duty floor structures to fulfil high acoustic requirements.

REGUPOL sound 17 is an effective, 17 mm thick impact sound insulation layer with a profiled underside and a low dynamic stiffness of ≤ 19 MN/m³ which is used under heavy-duty screeds.

Impact sound reduction values of ∆Lw ≥ 26 and ∆Lw ≥ 30 dB for 2-layer configuration.

REGUPOL sound 17
Cradle to Cradle Certified® Bronze

Projects realised with REGUPOL sound 17

Convinced customers all over the world are the best testimony to quality and experience. Here we show a selection of our projects that have been implemented with REGUPOL sound 17 impact sound insulation.

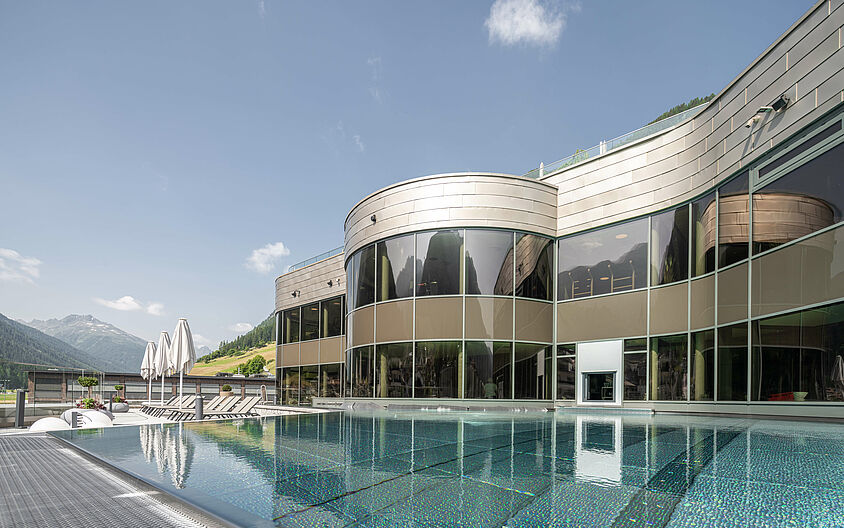

Alpine luxury spa in Ischgl sets new standards

Alpine luxury spa in Ischgl sets new standards

The Silvretta Therme in Ischgl opened in winter 2022 after a three-year construction period. Already during the planning phase, the focus was set on a resource-saving construction method. The building was planned and constructed to be as sustainable and energy-saving as possible.…

read more

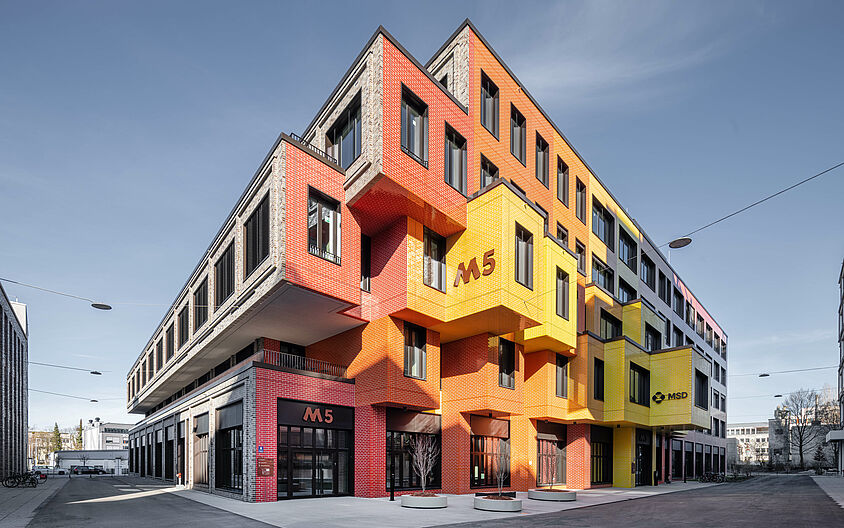

Creating the future in an urban and lively quarter

Creating the future in an urban and lively quarter

On the former Temmler site in Berg am Laim, Macherei München was officially opened on 27.10.2022 after almost five years of construction. On the formerly industrially used site, a 74,400 m² urban and lively quarter for free design has been created.

The quarter, where work is…

read more

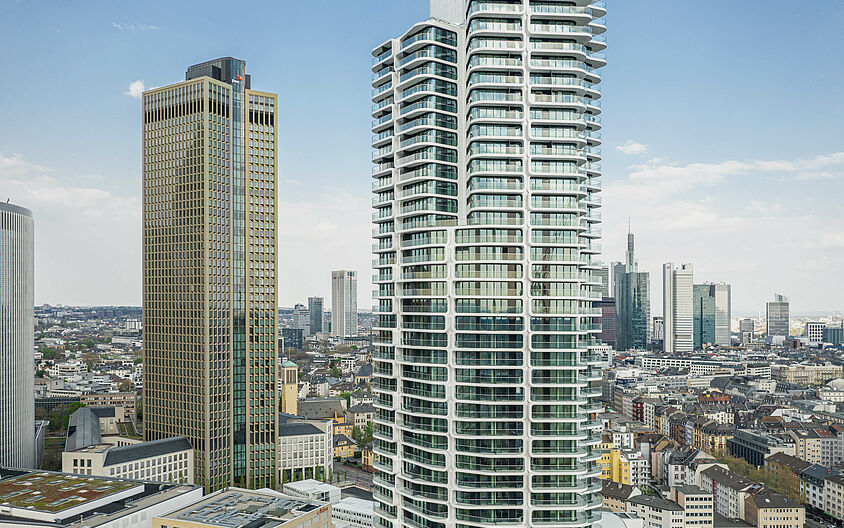

Impact sound insulation for Germany's tallest high-rise residential building

Impact sound insulation for Germany's tallest high-rise residential building

With a height of 180 metres and 47 storeys, the Grand Tower has been Germany's tallest residential high-rise since 2019. It was built at the entrance to the Europaviertel in Frankfurt am Main. The architecture was designed by the Frankfurt architectural firm Magnus Kaminiarz &…

read more

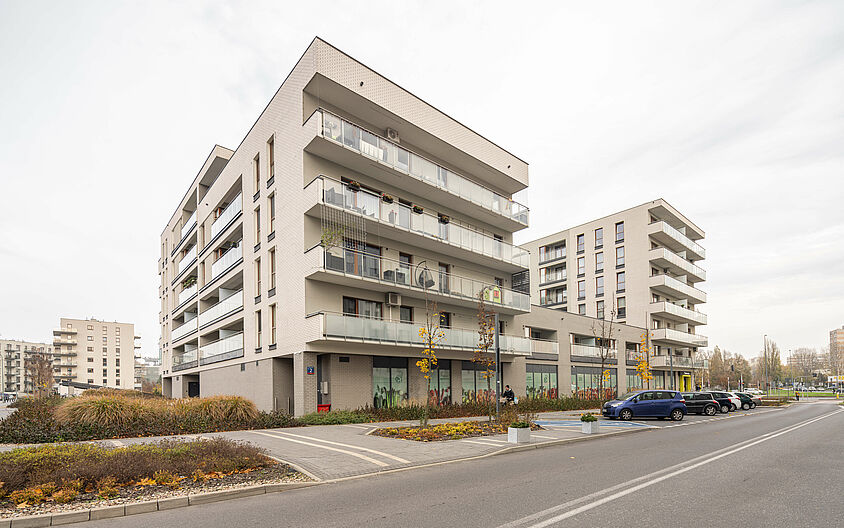

Living above the supermarket – Biedronka Bergamotki, Warsaw

Living above the supermarket – Biedronka Bergamotki, Warsaw

A Biedronka supermarket with flats on the upper floor was built in the Stegny district of Warsaw. Stegny is part of Warsaw's Mokotów district and is located on the southern outskirts of the city. Although the city centre seems quite close when you look at the map, it would take…

read more

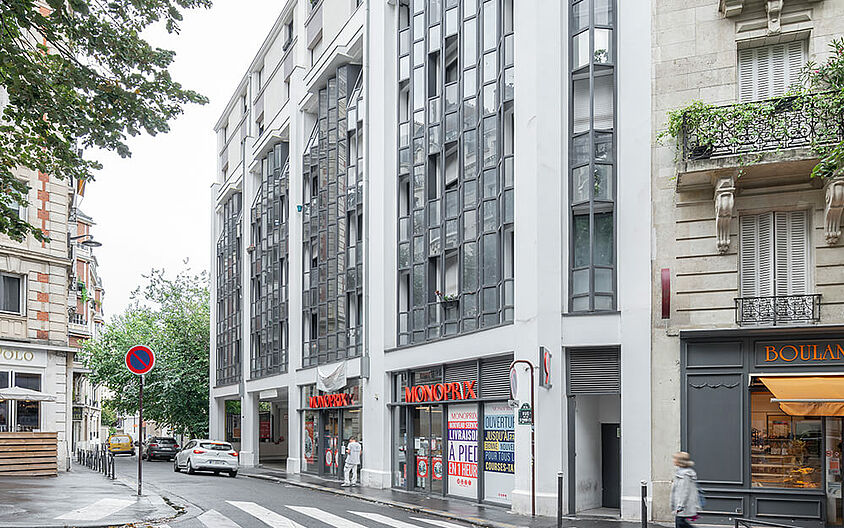

Monoprix Jasmin Paris

Monoprix Jasmin Paris

In the 16th arrondissement, a prestigious district near the Eiffel Tower, the price per square metre is very high. Flat owners therefore understandably place high demands on sound insulation. In this neighbourhood, the renovation of a MONOPRIX store was planned. The top priority…

read more

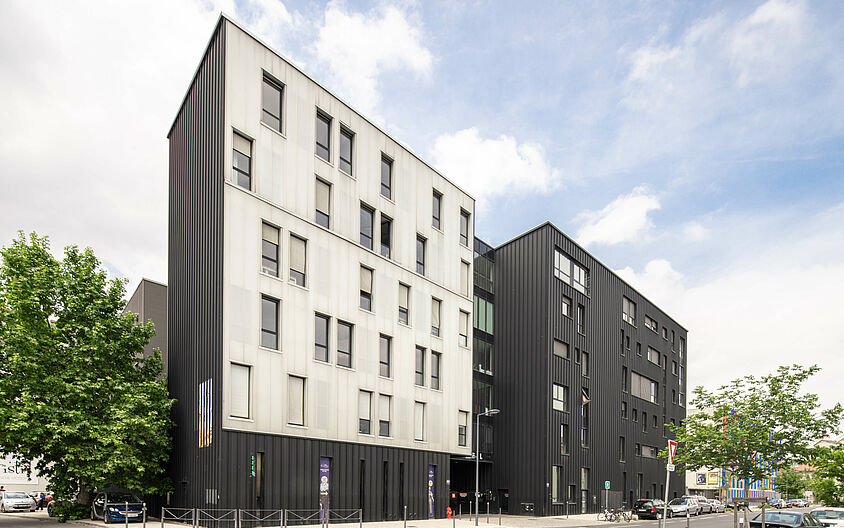

Impact sound insulation for boundless creativity

Impact sound insulation for boundless creativity

The Pôle PIXEL Lyon is a business park for the creative industries of the Rhône-Alpes region. Located in Villeurbanne, in the north-east of the city, it has an area of around 40,000m² and provides space for around a hundred companies from the multimedia, digital and audiovisual…

read more

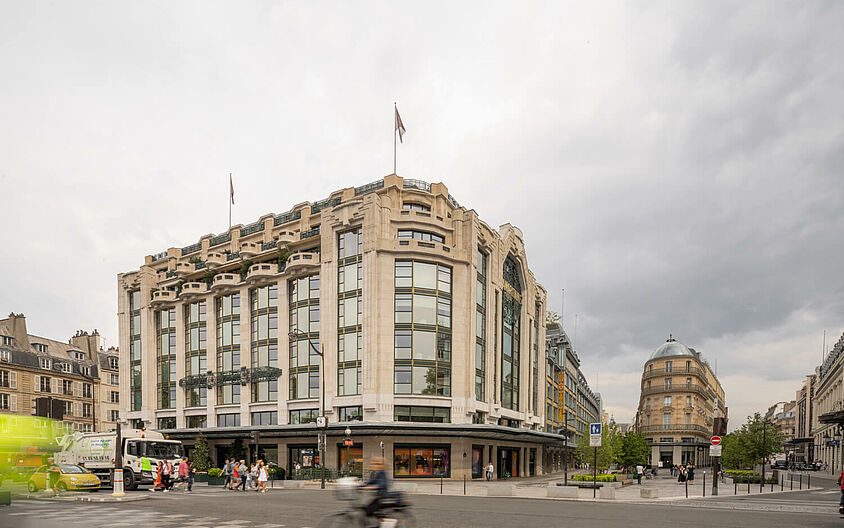

La Samaritaine Paris

La Samaritaine Paris

Fifteen years after its closure, the famous and historic Parisian department stores' La Samaritaine reopened its doors in 2021. Since its reopening, it has been a perfect example of a mixed-use building, housing, among other things, a hotel, shops, a crèche, and office space…

read more
Brownfield development Lidl Münchwilen

Brownfield development Lidl Münchwilen

Until 2017, the inhabitants of Münchwilen often did their bulk shopping away from home, as there were previously only smaller shops in the municipality with articles for everyday life. Through the brownfield activation of the former embroidery in Frauenfelderstrasse…

read more
From brownfield to cultural centre

From brownfield to cultural centre

The Centrum Praskie Koneser is a unique place in the Praga district of Warsaw. It is named after the "Koneser" vodka factory, which produced on the site until 2009. After production ceased, a concept for conversion was developed. Between 2015 and 2018, the entire area was…

read more

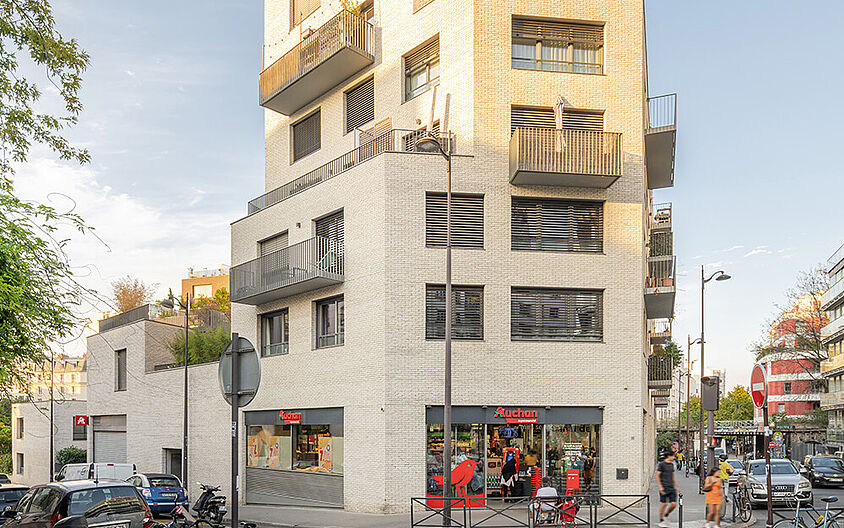

Auchan Paris

Auchan Paris

One of many different mixed-use buildings in France has been realized in the 19th arrondissement of Paris, La Villette, where a supermarket by the Auchan group has been successfully renovated. The suburb is quiet but offers all benefits of a modern city as well as a good public…

read more

Features


  • CE marking
  • Impact sound reduction 1-layer ∆L≥ 26 dB
  • Impact sound reduction 2-layer ∆Lw ≥ 30 dB
  • Load bearing capacity up to 50 kN/m²
  • Compressibility ≤ 2 mm

Technical Specifications


Material

PUR-bonded rubber fibres

Dimensions

Length 1,000 mm, width 1,200 mm, thickness 17 mm

Weight per sheet

max. 9.6 kg

Weight per m²

max. 8.0 kg

REGUPOL – the expert by your side

In REGUPOL, specialists all over the world have an expert partner with many years’ experience in impact and airborne sound insulation, that guarantees a premium level of building acoustics, especially when multiple uses are combined within a single building.

With the REGUPOL and REGUFOAM sound range, effective soundproofing solutions can be implemented in urban densification concepts whether it is the construction of new buildings or the renovation of residential and commercial properties.
