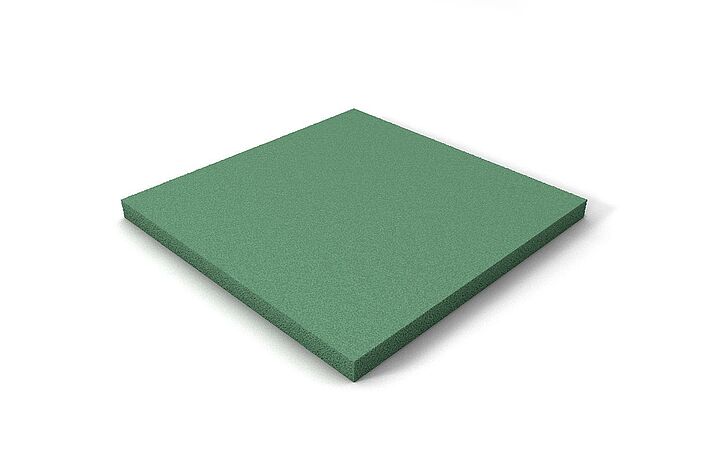

REGUFOAM vibration 150plus

Vibration isolation

REGUFOAM vibration 150plus

Vibration isolation

The approved material REGUFOAM vibration 150plus is used in the load range up to 0.011 N/mm². Depending on load and material thickness, natural frequencies of 9 Hz can be achieved.

REGUFOAM vibration 150plus is a vibration isolation and structure-borne sound decoupling material for the load range up to 0.011 N/mm². It can be used in single or double layers to achieve natural frequencies of down to 9 Hz, depending on load and material thickness.

REGUFOAM vibration 150plus
Cradle to Cradle Certified® Bronze
New home for the South Westphalia Philharmonic Orchestra

New home for the South Westphalia Philharmonic Orchestra

The NRW state orchestra moved into its top-class rehearsal centre in mid-2023. The Haus der Musik in Siegen offers the musicians the best rehearsal conditions. In addition to the 400 m² rehearsal hall, which is perfectly harmonised in terms of acoustics, the cubic building offers…

read more
Sustainable project development – Varso Tower Warsaw

Sustainable project development – Varso Tower Warsaw

Since 2022, Warsaw has been home to the tallest building in the EU. Looking at the continent as a whole, there are of course taller buildings than the 310 m high tower. However, with regard to the EU, Warsaw has made it to the top of the list with the construction of the Varso…

read more

Features


  • Approved by building authorities
  • Load range up to 0.011 N/mm²
  • Natural frequency of down to 9 Hz
  • Minimal material deflection


Technical Specifications


Material

Mixed cellular polyurethane foam

Dimensions

Length: 5.000 mm, width: 1.500 mm, thickness: 12.5 mm and 25.0 mm

Weight per roll

max. 15.0 kg - thickness 12.5 mm
max. 30.0 kg - thickness 25.0 mm

Weight per m²

max. 2.0 kg - thickness 12.5 mm
max. 4.0 kg - thickness 25.0 mm

REGUPOL – the expert by your side

In REGUPOL, building acoustic specialists all over the world have an expert partner with many years’ experience in vibration isolation and structure-borne sound decoupling of machinery and buildings. The products of the REGUFOAM vibration range are characterized by their outstanding durability. Successfully completed projects and expert opinions clearly document the quality of these materials.

Ask the experts

You have questions about our REGUPOL vibration isolation or impact sound insulation products? Please don't hesitate to contact us. Our experts are…
