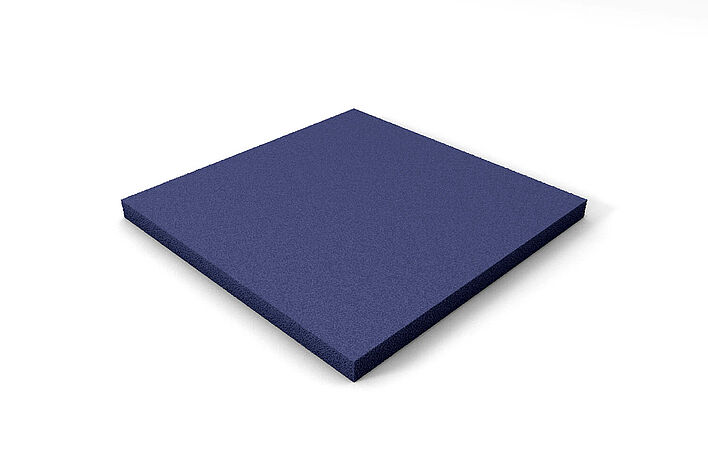

REGUFOAM vibration 220plus

Vibration isolation

REGUFOAM vibration 220plus

Vibration isolation

The approved material REGUFOAM vibration 220plus is used in the load range up to 0.028 N/mm². Depending on load and material thickness, natural frequencies of 9 Hz can be achieved.

REGUFOAM vibration 220plus is a vibration isolation and structure-borne sound decoupling material for the load range up to 0.028 N/mm². It can be used in single or double layers to achieve natural frequencies of down to 9 Hz, depending on load and material thickness.

REGUFOAM vibration 220plus
Cradle to Cradle Certified® Bronze

Projects realised with REGUFOAM vibration 220plus

Convinced customers all over the world are the best testimony to quality and experience. Here we show a selection of our projects that have been implemented with REGUFOAM vibration 220plus vibration insulation.

New home for the South Westphalia Philharmonic Orchestra

New home for the South Westphalia Philharmonic Orchestra

The NRW state orchestra moved into its top-class rehearsal centre in mid-2023. The Haus der Musik in Siegen offers the musicians the best rehearsal conditions. In addition to the 400 m² rehearsal hall, which is perfectly harmonised in terms of acoustics, the cubic building offers…

read more
Conflict-free living directly on the beach

Conflict-free living directly on the beach

In Limassol, work began in 2016 on a construction site of superlatives. Since its completion in 2022, the ONE Tower has towered high above the city. With its height of 170 metres, it has made it to the top of two rankings at once: Limassol's new landmark is the tallest building…

read more

Features


  • Approved by building authorities
  • Load range up to 0.018 N/mm²
  • Natural frequency of down to 9 Hz
  • Minimal material deflection

Technical Specifications


Material

Mixed cellular polyurethane foam

Dimensions

Length: 5.000 mm, width: 1.500 mm, thickness: 12.5 mm and 25.0 mm

Weight per roll

max. 19.5 kg – thickness 12.5 mm
max. 39.0 kg – thickness 25.0 mm

Weight per m²

max. 2.6 kg – thickness 12.5 mm
max. 5.2 kg – thickness 25.0 mm

REGUPOL – the expert by your side

In REGUPOL, building acoustic specialists all over the world have an expert partner with many years’ experience in vibration isolation and structure-borne sound decoupling of machinery and buildings. The products of the REGUFOAM vibration range are characterized by their outstanding durability. Successfully completed projects and expert opinions clearly document the quality of these materials.

Ask the experts

You have questions about our REGUPOL vibration isolation or impact sound insulation products? Please don't hesitate to contact us. Our experts are…
