REGUFOAM vibration 270plus

Vibration isolation

REGUFOAM vibration 270plus

Vibration isolation

The approved material REGUFOAM vibration 270plus is used in the load range up to 0.042 N/mm². Depending on load and material thickness, natural frequencies of 9 Hz can be achieved.

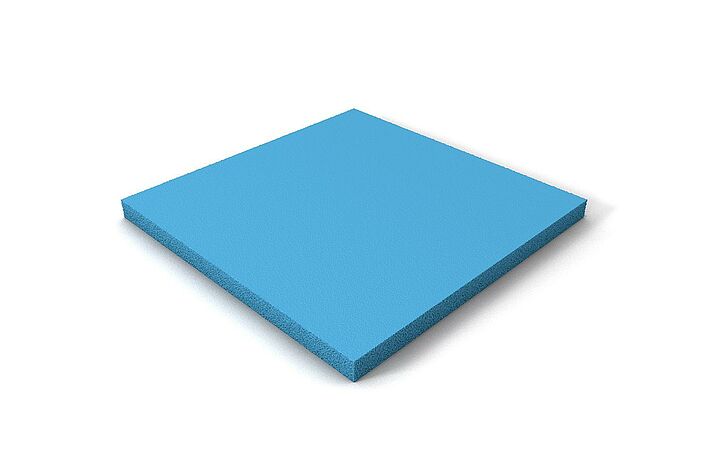

REGUFOAM vibration 270plus is a vibration isolation and structure-borne sound decoupling material for the load range up to 0.042 N/mm². It can be used in single or double layers to achieve natural frequencies of down to 9 Hz, depending on load and material thickness.

REGUFOAM vibration 270plus
Cradle to Cradle Certified® Bronze
Multi-family residential building Oberursel

Multi-family residential building Oberursel

A multi-family residential building with underground parking was built on Gattenhöferweg in Oberursel in 2019 and 2020. In the case of this construction project, the creation of additional living space on the outskirts of Frankfurt was complicated by the existing rail…

read more
New home for the South Westphalia Philharmonic Orchestra

New home for the South Westphalia Philharmonic Orchestra

The NRW state orchestra moved into its top-class rehearsal centre in mid-2023. The Haus der Musik in Siegen offers the musicians the best rehearsal conditions. In addition to the 400 m² rehearsal hall, which is perfectly harmonised in terms of acoustics, the cubic building offers…

read more

Features


  • Approved by building authorities
  • Load range up to 0.042 N/mm²
  • Natural frequency of down to 9 Hz
  • Minimal material deflection

Technical Specifications


Material

Mixed cellular polyurethane foam

Dimensions

Length: 5,000 mm, width: 1,500 mm, thickness: 12.5 mm and 25.0 mm

Weight per roll

max. 21.0 kg – thickness 12.5 mm
max. 42.0 kg – thickness 25.0 mm

Weight per m²

max. 2.8 kg – thickness 12.5 mm
max. 5.6 kg – thickness 25.0 mm

REGUPOL – the expert by your side

In REGUPOL, building acoustic specialists all over the world have an expert partner with many years’ experience in vibration isolation and structure-borne sound decoupling of machinery and buildings. The products of the REGUFOAM vibration range are characterized by their outstanding durability. Successfully completed projects and expert opinions clearly document the quality of these materials.

Ask the experts

You have questions about our REGUPOL vibration isolation or impact sound insulation products? Please don't hesitate to contact us. Our experts are…

read more
