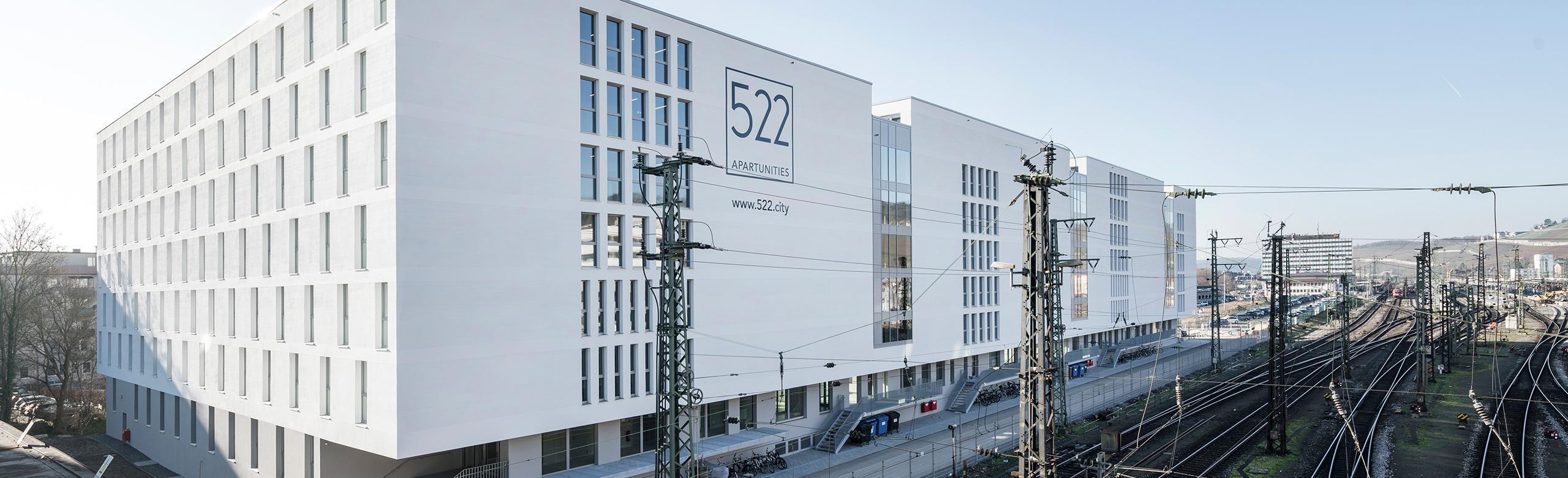

In Würzburg, student residence 522 is located directly next to the railway tracks.

REGUPOL vibration 450

Vibration isolation

REGUPOL vibration 450

Vibration isolation

The approved material REGUPOL vibration 450 is used in the load range up to 0.12 N/mm². Depending on load and material thickness, natural frequencies of 8 Hz can be achieved.

REGUPOL vibration 450 is a vibration isolation and structure-borne sound de-coupling material for the load range up to 0.12 N/mm² and is used for insulating vertical structural elements. The material is applied as a single layer and can be supplied with integrated installation aid. Natural frequencies of down to 8 Hz can be achieved, depending on load and material thickness.

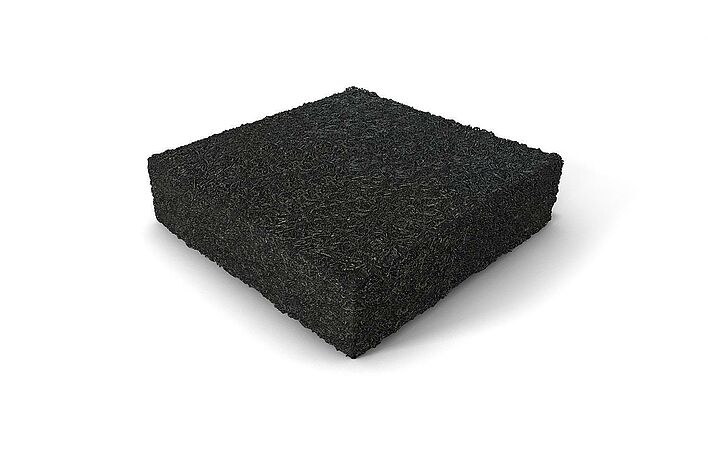

REGUPOL vibration 450
Cradle to Cradle Certified® Bronze

Projects realised with REGUPOL vibration 450

Convinced customers all over the world are the best testimony to quality and experience. Here we show a selection of our projects that have been implemented with REGUPOL vibration 450.

Conservatoire Léo Délibes Paris

Conservatoire Léo Délibes Paris

Built in 2009, the Léo Délibes Music School now has more than 1000 students and offers a wide range of courses to meet the needs of all learners. The building is located in Clichy in the north of Paris.

The music school welcomes many musicians, who will be able to work together…

read more
Housing estate Tassiloplatz Munich

Housing estate Tassiloplatz Munich

The lack of available space in Germany's cities is also leaving its mark on production companies with strong local roots – especially if they are successful and need to expand. After 77 years, the Bernbacher pasta factory had to give up its site at Munich's Tassiloplatz in order…

read more
Building Land Development Quellenpark Bad Vilbel

Building Land Development Quellenpark Bad Vilbel

The metropolitan area around Frankfurt (Main) has gained more and more importance in the recent years. With a population of 5.83 Mio the region ranks number four in the statistics about Germany’s eleven biggest urban regions.

Additionally, the city of Frankfurt is - beside…

read more

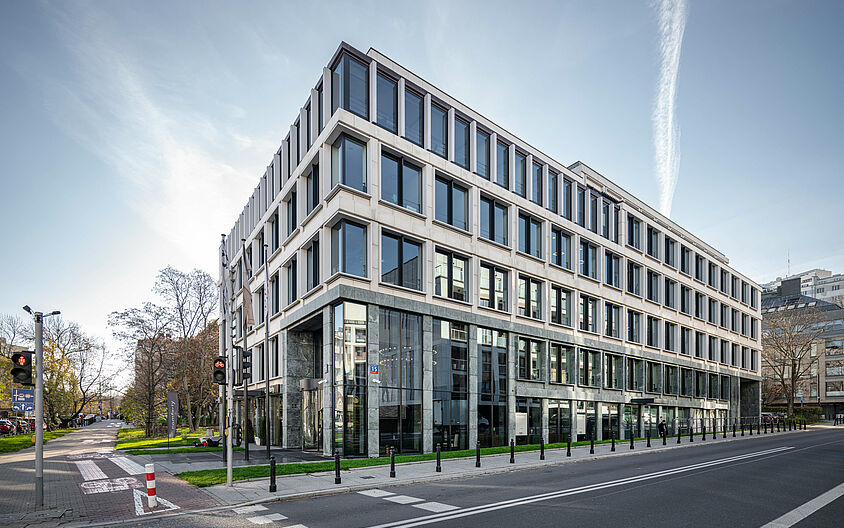

Carpathia Warsaw

Carpathia Warsaw

In 2018, the state-of-the-art Carpathia office building was completed in Warsaw's Powiśle district. Six above-ground floors offer around 4000m² of rental office space, while two underground floors add 40 car parking spaces. In addition to high-quality interiors that create a…

read more
Piano House Warsaw

Piano House Warsaw

With 68 rooms ranging in size from 30 to 250m², spread over a total of five floors, the Piano House is an imposing sight. Not only the size, but also the chosen building materials such as granite, quartz stone and onyx give the property an impressive look. Moreover, the name says…

read more

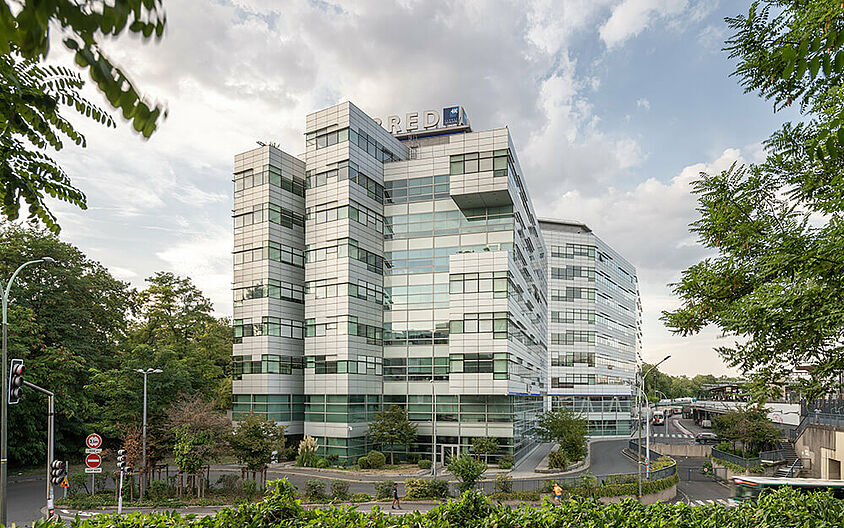

BRED Joinville-le-Pont Paris

BRED Joinville-le-Pont Paris

As part of its expansion, the French banking group BRED has constructed a new building in Joinville-le-Pont. This office complex, which meets the latest environmental requirements, is located in a very busy area, in the immediate vicinity of the railway line and the road.

Thus,…

read more

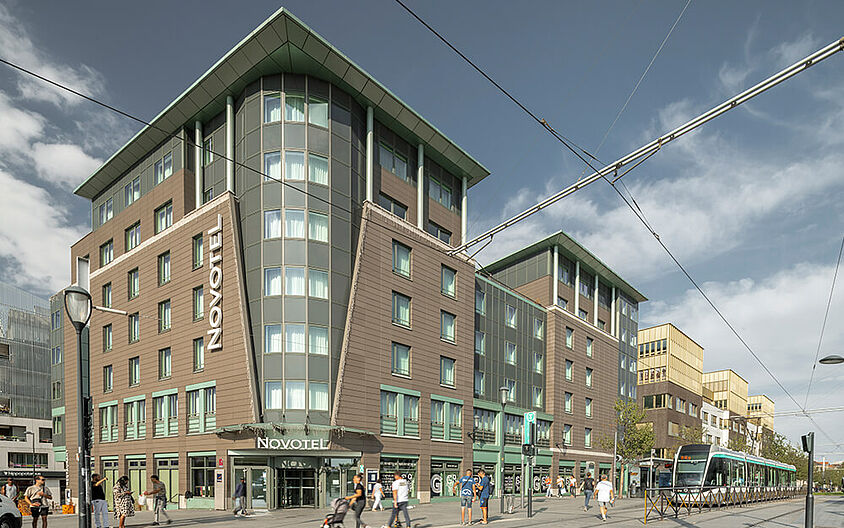

Novotel Saint-Denis Stade Basilique Paris

Novotel Saint-Denis Stade Basilique Paris

City hotels with close proximity to metros and tram lines are often confronted with structure-borne vibrations. One example is the Novotel Saint-Denis Stade Basilique near the stadium “Stade de France” in Paris. The hotel is located in the dense suburb Saint-Denis which counts a…

read more

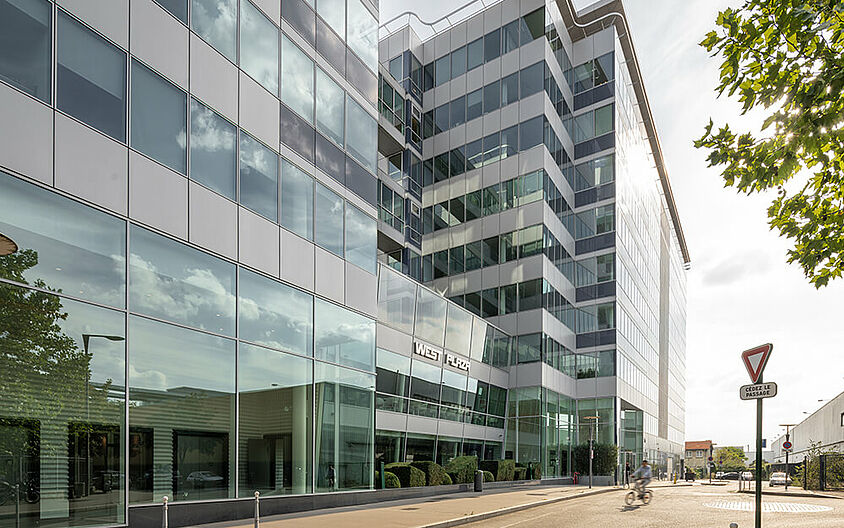

West Plaza Colombes Paris

West Plaza Colombes Paris

In Colombes, north-west of Paris, the office building West Plaza has been built beginning of the 2010’s. The architectural firm 3AM had planned and the construction company Vinci built the impressive complex. This development is an outstanding example of a modern mixed-use…

read more

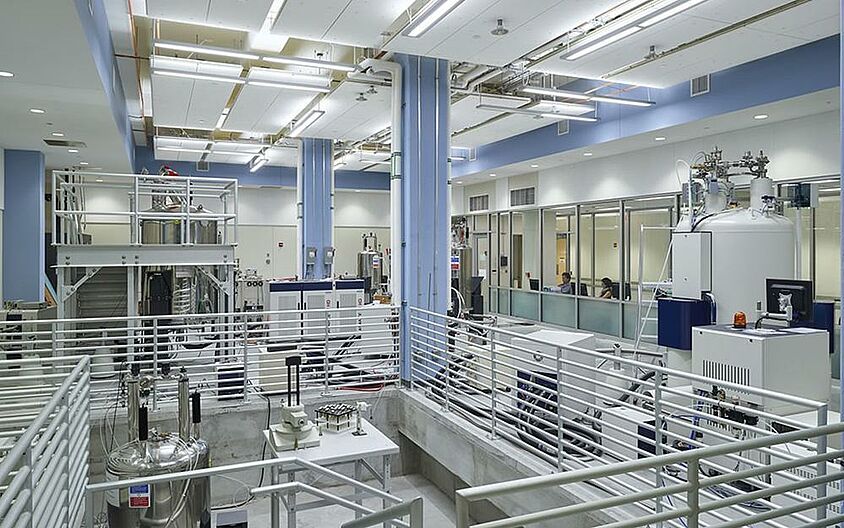

University of north  carolina school of medicine, marsico hall

University of north carolina school of medicine, marsico hall

Vibration isolation of research building due to vibration-sensitive equipment, like scanners for magnetic resonance imaging (MRI) and computed tomography (CT) for human and animal imaging in its laboratories.

read more

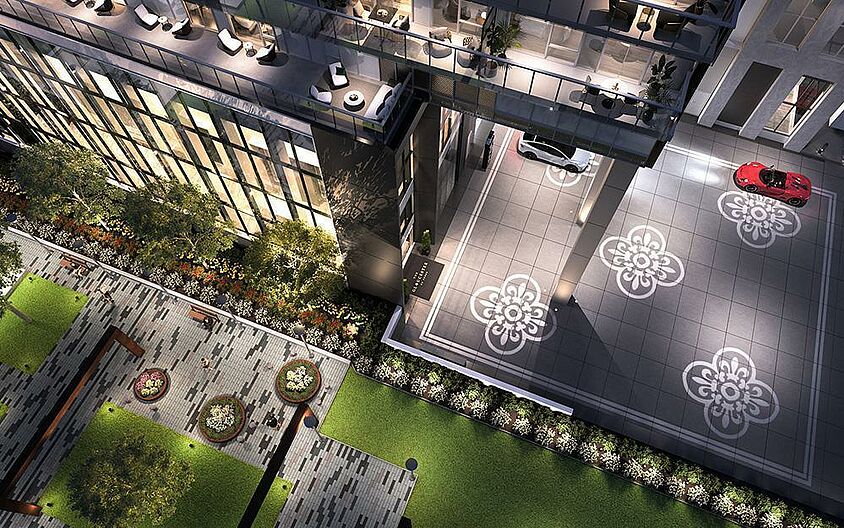

Clover on yonge

Clover on yonge

REGUPOL Acoustics helped develop noise and vibration isolation recommendations and provided isolation material for the Clover on Yonge residential community. Located in the heart of Toronto, the 55-story tower features 21 private residences and 513 units. The Clover is located on…

read more

Features


  • Approved by building authorities
  • Load range up to 0.12 N/mm²
  • Natural frequency of down to 8 Hz
  • Progressive spring characteristics
  • Constant natural frequency over a wide load range
  • Optional installation aid

Technical Specifications


Material

PU-bonded rubber fibres

Dimensions

Length: 1,000 mm, width: 500 mm,
thickness: 25 mm and 50 mm

Weight per m²

12.0 kg – thickness 25.0 mm
24.0 kg – thickness 50.0 mm

REGUPOL – the expert by your side

In REGUPOL, building acoustic specialists all over the world have an expert partner with many years’ experience in vibration isolation and structure-borne sound decoupling of machinery and buildings. The products of the REGUPOL vibration range are characterized by their outstanding durability. Successfully completed projects and expert opinions clearly document the quality of these materials.
