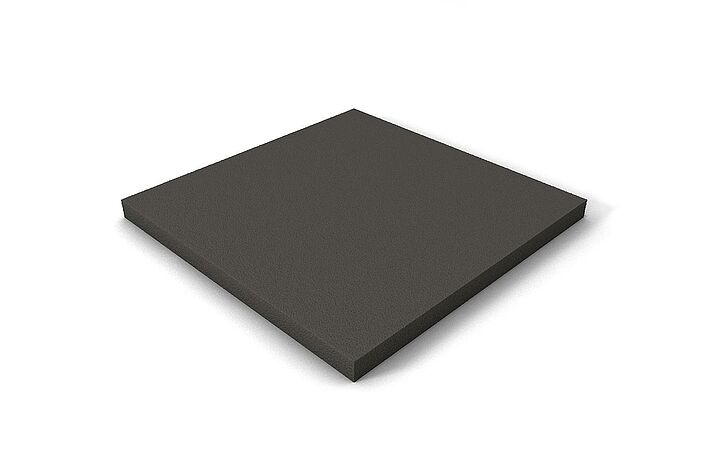

REGUFOAM vibration 300plus

Vibration isolation

REGUFOAM vibration 300plus

Vibration isolation

The approved material REGUFOAM vibration 300plus is used in the load range up to 0.055 N/mm². Depending on load and material thickness, natural frequencies of 9 Hz can be achieved.

REGUFOAM vibration 300plus is a vibration isolation and structure-borne sound decoupling material for the load range up to 0.055 N/mm². It can be used in single or double layers to achieve natural frequencies of down to 9 Hz, depending on load and material thickness.

REGUFOAM vibration 300plus
New home for the South Westphalia Philharmonic Orchestra

New home for the South Westphalia Philharmonic Orchestra

The NRW state orchestra moved into its top-class rehearsal centre in mid-2023. The Haus der Musik in Siegen offers the musicians the best rehearsal conditions. In addition to the 400 m² rehearsal hall, which is perfectly harmonised in terms of acoustics, the cubic building offers…

read more
Building Land Development Quellenpark Bad Vilbel

Building Land Development Quellenpark Bad Vilbel

The metropolitan area around Frankfurt (Main) has gained more and more importance in the recent years. With a population of 5.83 Mio the region ranks number four in the statistics about Germany’s eleven biggest urban regions.

Additionally, the city of Frankfurt is - beside…

read more
Spend the night on a former brownfield

Spend the night on a former brownfield

It is probably one of the most symbolic and unique places in all of Lyon: the "Les Docks" area on Quai Rambaud. The eight-hectare site is located on a headland, between the Saône and Rhône rivers, in the north of the city. To create an industrial and logistics centre, people…

read more
Multi-family residential building Oberursel

Multi-family residential building Oberursel

A multi-family residential building with underground parking was built on Gattenhöferweg in Oberursel in 2019 and 2020. In the case of this construction project, the creation of additional living space on the outskirts of Frankfurt was complicated by the existing rail…

read more

Features


  • Approved by building authorities
  • Load range up to 0.055 N/mm²
  • Natural frequency of down to 9 Hz
  • Minimal material deflection

Technical Specifications


Material

Mixed cellular polyurethane foam

Dimensions

Length: 5,000 mm, width: 1,500 mm, thickness: 12.5 mm and 25.0 mm

Weight per roll

max. 23.5 kg – thickness 12.5 mm
max. 47.0 kg – thickness 25.0 mm

Weight per m²

max. 3.1 kg – thickness 12.5 mm
max. 6.2 kg – thickness 25.0 mm

REGUPOL – the expert by your side

In REGUPOL, building acoustic specialists all over the world have an expert partner with many years’ experience in vibration isolation and structure-borne sound decoupling of machinery and buildings. The products of the REGUFOAM vibration range are characterized by their outstanding durability. Successfully completed projects and expert opinions clearly document the quality of these materials.
