REGUPOL sonus curve 10
For Floating Floor Constructions
Formerly SonusWave SW510, the 10mm thick REGUPOL sonus curve 10 combines high insulation requirements with outstanding value.
Our 10mm (3/8") REGUPOL sonus curve 10 underlayment is engineered, manufactured, and tested to reduce the transmission of impact sound generated by footfall noise. Durable, versatile and cost-effective are the main characteristics to describe this dimpled flooring underlayment. Various thicknesses let you design many different floor constructions to reduce impact and airborne sound transmission within building structures. REGUPOL sonus curve is perfectly suited for commercial and residential buildings underneath hardwood, concrete, screed, and floating floor systems.
Features
- Sustainable building product made from post-consumer and post-industrial waste
- Applicable for a wide range of floor coverings
- GreenCircle certified and can potentially qualify for up to 8 LEED points
- Greatly reduces sound transmission of impact noise
- Multiple sizes available including 6mm, 8mm, 10mm, 17mm, and 25mm thicknesses
Technical Specifications
Material

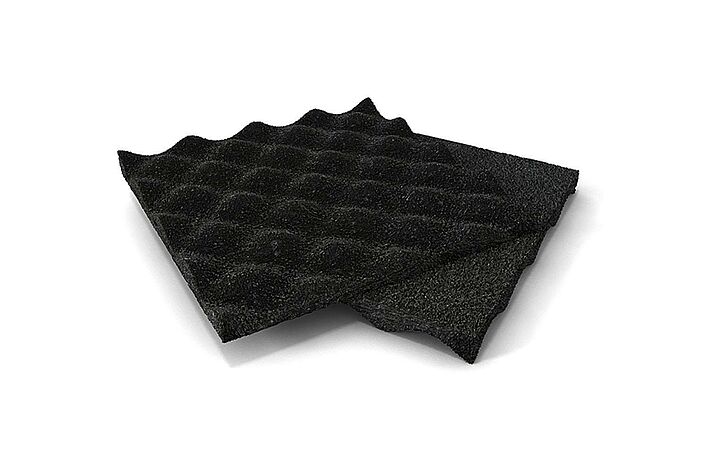

PUR bonded post consumer SBR tire rubber featuring a dimpled profile underside
Weight
123 lb - 1.23 lb/sqft
Hardness
A Shore Durometer 25 – 35
Dimensions
Roll size: 4' x 25'-100 sqft/roll
Thickness: 10mm (3/8")
Density (ASTM D-792)
37 lb / cuft (+/- 4 lb)
Downloads
Test reports
REGUPOL - the expert by your side
In REGUPOL, you have an expert partner with many years’ experience in impact and airborne sound insulation, that guarantees a premium level of building acoustics, especially when multiple uses are combined within a single building.
With the REGUPOL sonus curve range, effective soundproofing solutions can be implemented in urban densification concepts whether it is the construction of new buildings or the renovation of residential and commercial properties.
